BAM Fungus Cellar



Facility Information

Organization: Bundesanstalt für Materialforschung und -prüfung BAM
Contact person: Dr Ina Stepan / Christian Reger
Who uses it or can use it?: BAM scientists for research & testing
Is it a contract testing site? Yes
Location: Unter den Eichen 87, 12205 Berlin, Germany
Coordinates: 52.44293564994835, 13.28800496337979
Floor area approx. (m2): 230 m2 (Soil area 87 m2)
Moisture application: Waterdrops from above (“gentle rain”)
Moisture Control system: The moisture content of the soils is adjusted by an electronically controlled sprinkler installation to produce and maintain a moisture range in the stakes that promotes fungal attack of the wood.

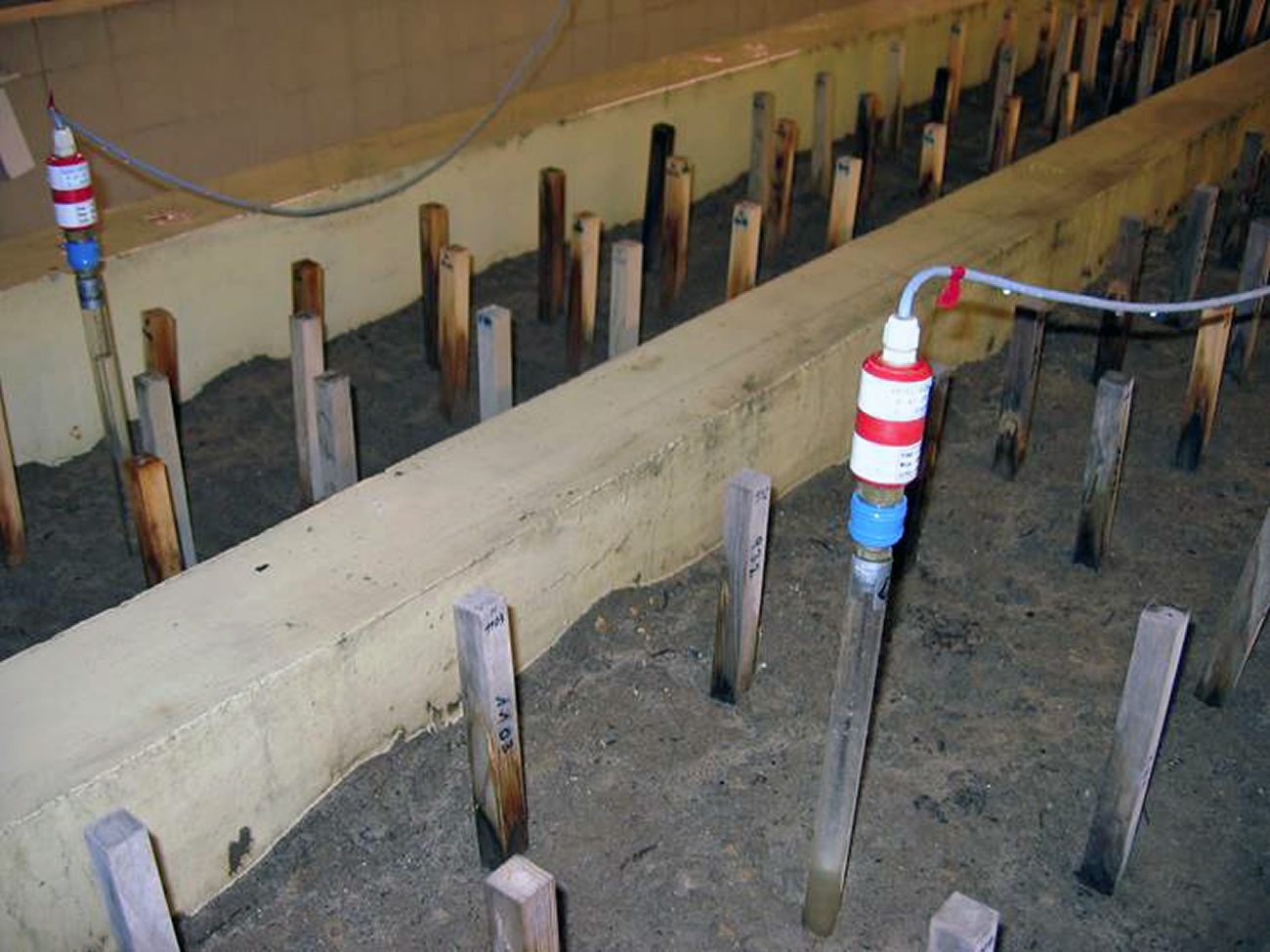

Soil moisture measurement: Tensiometer for measuring the soil matric potential

Type of testing

Decay: Yes
Mold: -
Termites or other insects: Yes
Ground Contact: Yes, stakes, mini-stakes
Dimensions used: 400 mm (longitudinal) x 20 mm x 20 mm
500 mm (longitudinal) x 50 mm x 25 mm
other formats agreed with customers
Above Ground: Decay testing above ground
Weathering: Simulation of rainfall
Test beds used: Yes

Biodeteriogens

Type of decay: brown-rot, white-rot, soft-rot
Mold species: diverse, undefined
Termite species: Reticulitermes flavipes var. santonensis.

Geophysical information

Simulated Rainfall: to adjust the soil moisture according to test parameters
Temperature mean: about 24°C (20°C – 26°C)
Soil-type: loamy sand

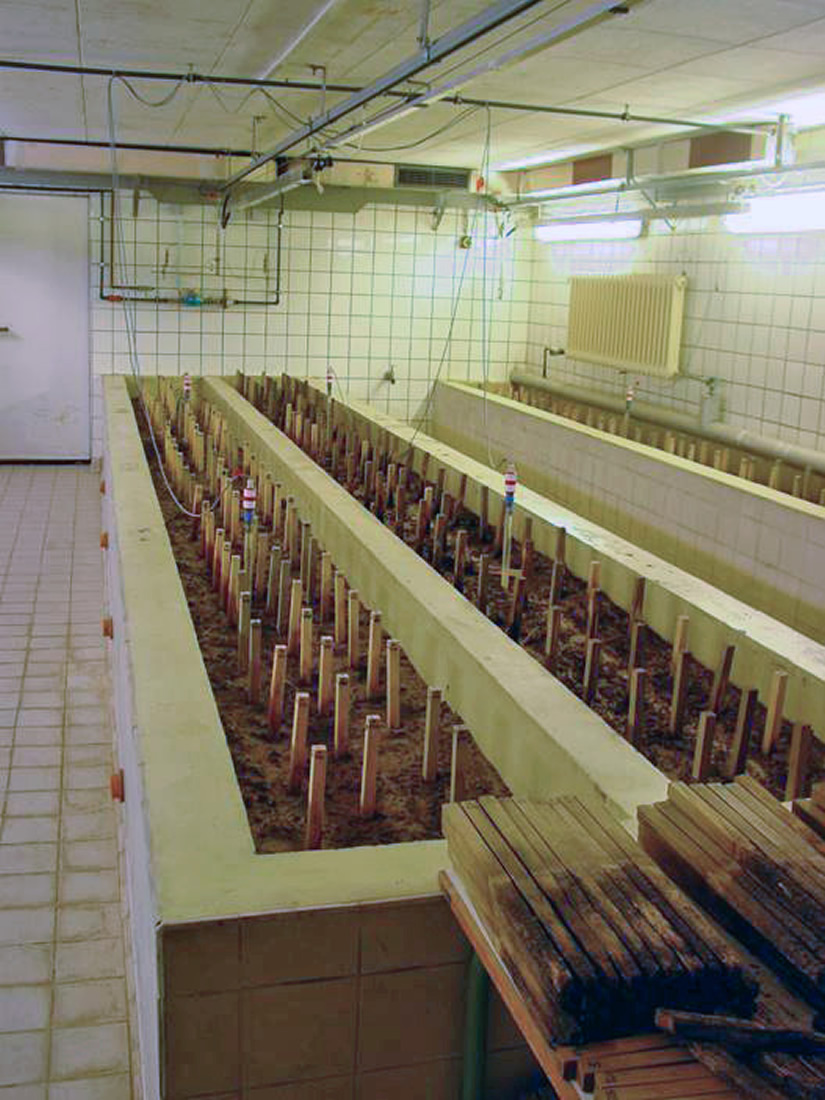

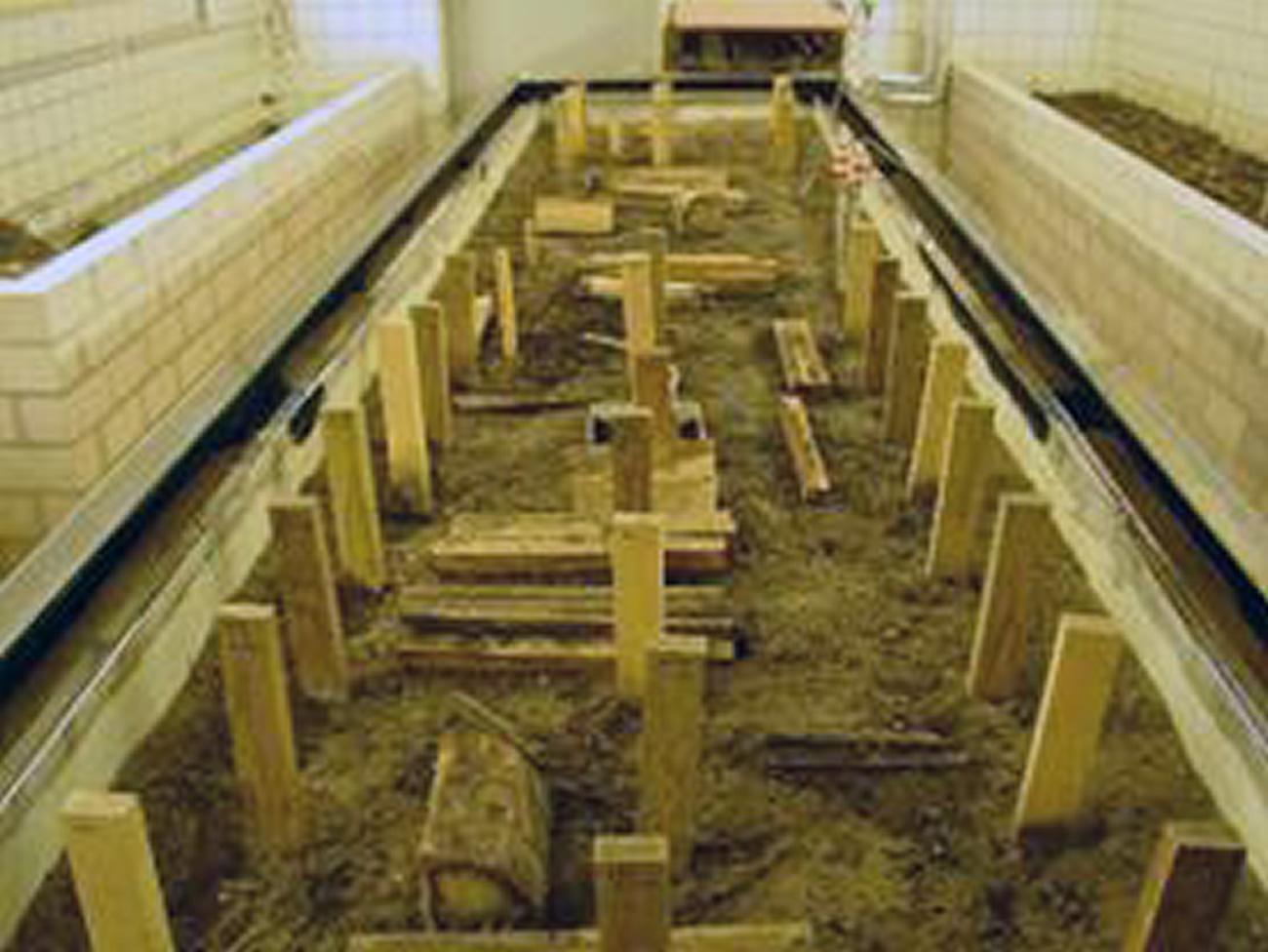

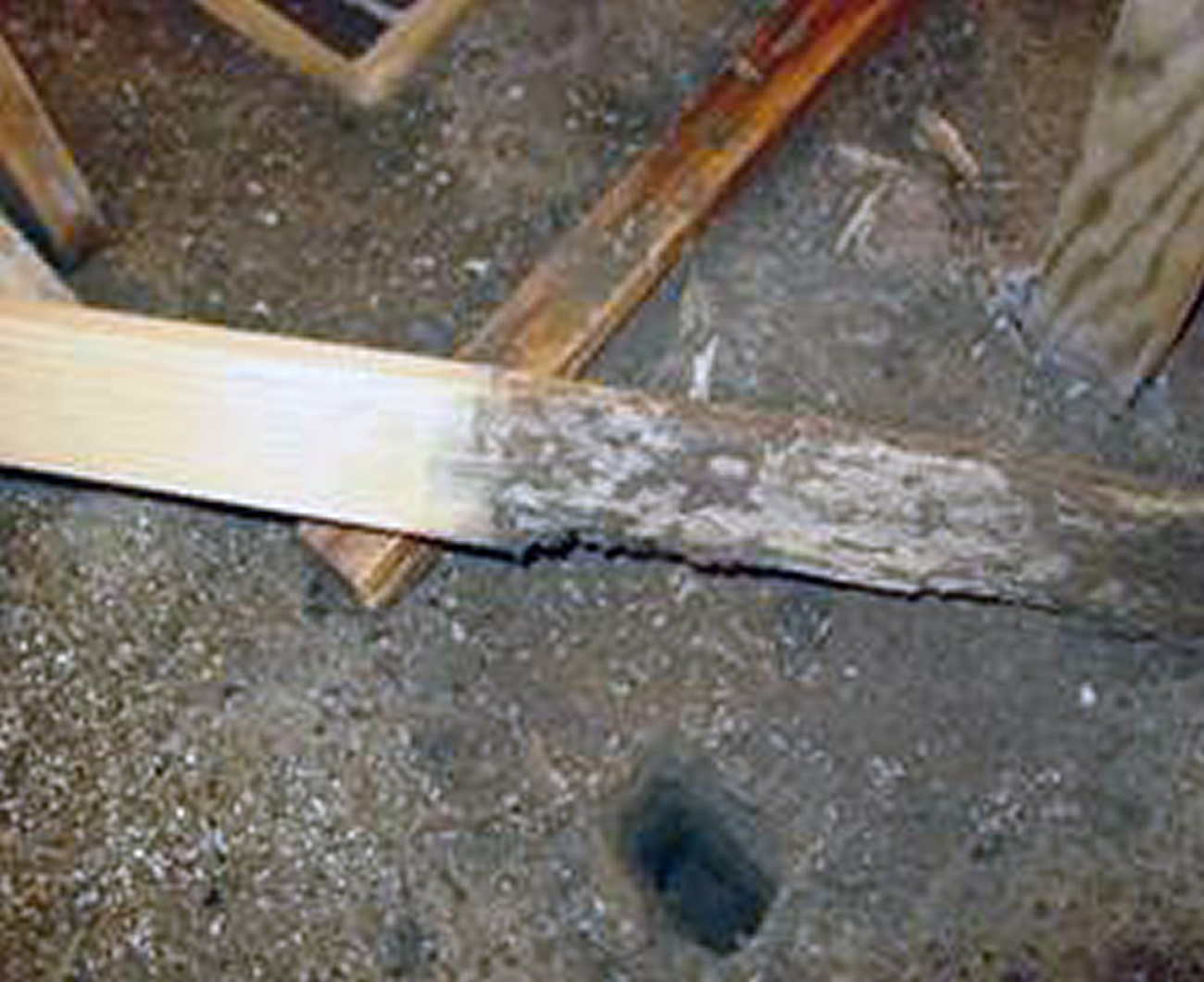

Images



References

DIN 52168:1978 Prüfung von Holz; Biegeversuch (Testing of wood, Bending test)

DIN EN 252:1989 Holzschutzmittel; Freiland-Prüfverfahren zur Bestimmung der relativen Schutzwirkung eines Holzschutzmittels im Erdkontakt. Deutsche Fassung EN 252:1989

DIN V ENV 807:2001 Holzschutzmittel; Prüfverfahren für die Bestimmung der Grenze der Wirksamkeit gegen Moderfäule und andere erdbewohnende Mikroorganismen. Deutsche Fassung ENV 807:2001

Gersonde, M. (1987)
Determination of the long term effectiveness of wood preservatives with and without soil contact by accelerated test methods. In: Proceedings of CEC Seminar on Wood Technology in Munich. München, 14./15.04.1987

Grinda, M. & Göller, S. (2005a)
Some experiences with stake tests at BAM test fields and in the BAM fungus cellar. Part 1: Comparison of results of visual assessments and determinations of static moduli of elasticity (MOE). Int. Research Group on Wood Preservation, Stockholm, Sweden, Doc. No. IRG/WP 05-20319

Grinda, M. & Göller, S. (2005b)
Some experiences with stake tests at BAM test fields and in the BAM fungus cellar. Part 2: Comparison of static and dynamic moduli of elasticity (MOE). Int. Research Group on Wood Preservation, Stockholm, Sweden, Doc. No. IRG/WP 05-20320

Stephan, I.; Göller, S. & Rudolph, D. (1996)
Improvement of monitoring the effects of soil organisms on wood in fungus cellar tests. Int. research Group on wood preservation, Stockholm, Sweden, Doc. No. IRG/WP96-20093

Stephan, I.; Grinda, M. & Rudolph, D. (1998)
Comparison of different methods for assessing the performance of preservatives in the BAM fungus cellar test. Int. research Group on wood preservation, Stockholm, Sweden, Doc. No. IRG/WP98-20149
